Hot Dipped Galvanized Steel Coils and Sheets

Hot Dipped Galvanized

Galvanized steel is defined as a carbon steel sheet that is coated with zinc on both sides

Flat Products

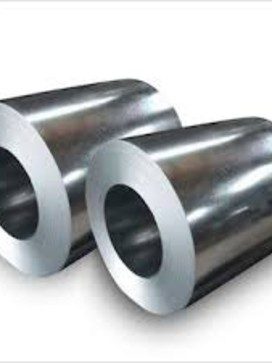

Hot Dipped Galvanized Steel Coils and Sheets

Our range of hot dipped galvanized steel with metallic zinc coating is available in various steel grades ranging from steel for bending and deep drawing applications, to structural steel and high yield strength steels. Hot dip galvanized products offer excellent corrosion resistance combined with very good forming properties.

Applications

These products can be used both indoors and outdoors for most common applications:

01. Building

Wide sections for roofs and cladding, structural members

02. Manufacturing

Dry wall partition, false ceiling, cable tray, air duct

03.Miscellaneous

Road signs, air conditioners, automotive, electric equipment

Hot Dipped Galvanized
Flat Products

Hot Dipped Galvanized Steel Coils and Sheets

Process of coating steel with a layer of zinc by immersing the metal in a bath of molten zinc. The metallic zinc coating is available in steel grades ranging from steel for bending and deep drawing applications, to structural steel and high yield strength steels. Hot dip galvanized products offer excellent corrosion resistance combined with very good forming properties.

Applications

These products can be used both indoors and outdoors for most common applications:

01. Building

Wide sections for roofs and cladding, structural members

02. Manufacturing

Dry wall partition, false ceiling, cable tray, air duct

03.Miscellaneous

Road signs, air conditioners, automotive, electric equipment

Material Specifications
Material Hot Dipped Galvanized Steel Coils and Sheets
Thickness Range 0.30 mm to 3 mm
Width 1050 mm - 1500 mm
Grade Commercial and Structural grade (ASTM A653, AS 1397, JIS G 3302, EN10346)
Zinc Coating G90 (Z275), G60 (Z180), G40 (Z120), G30 (Z90)
Spangle Regular, Minimum, Zero Spangle & Skin Passed Material
Origin BlueScope (Australia), UAE (AGIS), Europe, China and India
Coil I.D. 508 mm – 610 mm
Max Coil Weight 4 MT – 10 MT
