Pre-Painted Coils & Sheets

Suitable for many applications in general industry

Flat Products

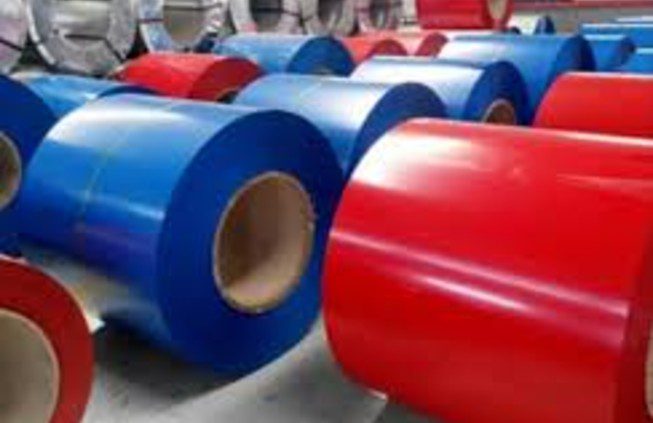

Pre-Painted Coils and Sheets

Pre-painted steel is used in all sectors of industry and offer much higher productivity than post-painting. The line speeds is around 100 m / min and thereby reduces the cost of applying an organic coating. In fact, switching from post-painting to coil pre-painted eliminates the need for a degreasing paint shop and applies a surface treatment.

Applications
01.Building & Construction

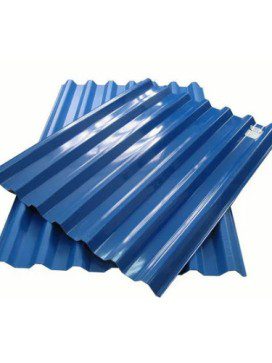

Cladding, roofing, lightings

02. General Industry

Metal furniture, ventilation & air conditioning

03. Domestic Appliances

White goods (refrigerators, washing machines), brown goods (computer casing, DVD casings)

Material Specifications
Material Pre-Painted Coils & Sheets
Thickness Range 0.28 mm to 0.68 mm
Width 1070 mm - 1220 mm
RAL (Colour) 1001, 9002, 9003
Top Coat 5 + 20 Micron ((5 Micron Primer and 20 Micron Finish Coat)
Bottom Coat 5 + 7 Micron (5 Micron Primer and 7 Micron Finish Coat)
Origin UAE, China and India
Coil I.D. 508 mm
Max Coil Weight 4 MT – 6MT
